Avaada PV Modules Supplier India — AVN66G12G N-Type Bifacial 700-720W | Eco Amp Solutions
PV MODULES — AUTHORISED DISTRIBUTOR
Avaada
AVN66G12G — N-Type TOPCon Bifacial Glass-to-Glass
132 Cells, 18 Busbars, 700W–720W
Up to 720W
23.18% Efficiency
30yr Performance Warranty
12yr Product Warranty
N-Type TOPCon
Bifacial Glass-to-Glass
IP68 Junction Box
BIS | IEC Certified

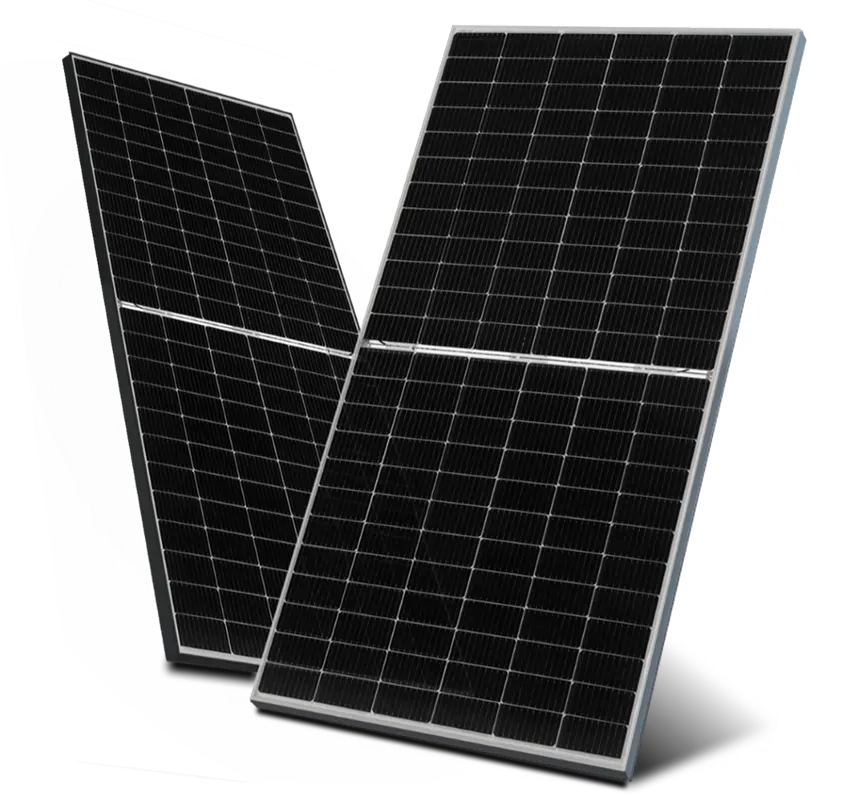

PRODUCT IMAGE
PACKAGING INFO
31 modules per pallet
20 pallets per 40'HC container
620 modules per container
20 pallets per 40'HC container
620 modules per container
ELECTRICAL PARAMETERS — STC
Peak Power (Pmax)700W – 720W
Module Efficiency22.53% – 23.18%
Maximum Voltage (Vmpp)40.5V – 41.3V
Maximum Current (Impp)17.29A – 17.43A
Open Circuit Voltage (Voc)48.2V – 49.0V
Short Circuit Current (Isc)18.32A – 18.48A
Power Tolerance0 ~ +5W
Bifaciality Factor80 ± 5%
MECHANICAL SPECIFICATIONS
Cell TypeN-Type TOPCon, 18 MBB
No. of Cells132 Cells
Dimensions2384 × 1303 × 35 mm
Weight38 kg
Front Glass2.0mm AR Coated
Back Glass2.0mm Semi-Tempered
FrameAnodized Aluminium Alloy
Junction BoxIP68, 3 Diodes
ConnectorsMC4 Compatible
Max System Voltage1500V DC
Temperature Range-40°C to +85°C
EncapsulationPOE/EPE/EVA
TEMPERATURE COEFFICIENTS
Coefficient of Pmax-0.30%/°C
Coefficient of Voc-0.25%/°C
Coefficient of Isc0.04%/°C
NOCT45°C ± 2°C
WARRANTY
Product Warranty12 Years
Performance Warranty30 Years Linear
1st Year DegradationMax 1%
Annual DegradationMax 0.4% (Year 2–30)
End of Warranty OutputMin 87.4%
